| Processor | CPU | Intel® Core™ Ultra (Series 3) –U Processor |
| SKU option | ||
| BIOS | AMI EFI 128 Mbit | |
| Memory | Type | 2*DDR5 SO-DIMMs |
| Max. Capacity | 64 GB | |
| Display | GPU | Intel® UHD Graphics / Arc XE (based on CPU) |
| HDMI2.1 | 4xHDMI2.1, Max. 7680 x 4320 @60Hz | |
| HDMI-IN | 1xHDMI-IN （based on CPU with IPU) | |
| Audio | Controller | Realtek ALC897 |
| Interface | Audio out + Mic in | |
| Ethernet | Controller | Intel i219LM & Realtek RTL8125, 2.5 Gigabit Ethernet, Wake-on-LAN support , AMT support |
| Storage | M.2 | M.2 2280 with PCIe 4x/ SATA SSD support |
| Rear Panel | HDMI2.1 | 1 |
| HDMI2.0 | 3 | |
| Type-C | 1 | |
| LAN | 2 | |
| COM | 1 | |
| DC-IN | 1 | |

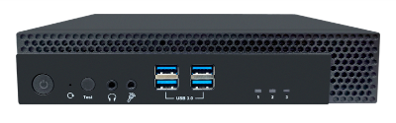

| Front Panel | Audio Out | 1 |
| Mic In | 1 | |
| USB3.2 | 4 | |
| Expansion | M.2 #1 | 1 x M.2 2230 with Wi-Fi /BT module support |
| M.2 #2 | 1 x M.2 3052 with 4G/5G module support | |
| M.2 #3 | 1 x M.2 2280 with PCIe 4X SSD support | |
| PCIe #1 | 1 x PCIe 4x | |
| OS | Windows 11 64Bit, Linux | |
| Functions | Watchdog, Auto Power On, TPM2.0, vPro | |
| Power | Power Type | DC-IN |
| Adapter | 12V/19V | |
| Cooling | Heat-pipe + Smart Fan | |
| Dimension | Construction | Metal |
| Mounting | YES | |
| W x H x D | 205 x 182 x 42 mm | |
| Environment | Operating Temp | 0~40℃ at 0.7m/s air flow |
| Storage Temp | -20~60℃ | |
| Relative Humidity | 95%@40℃ (non-condensing) |
